2021

ADDITIONAL VEHICLE FEATURES:

  • 32.7-inch seat height
  • Front and rear disc brakes
  • High tensile steel perimeter frame

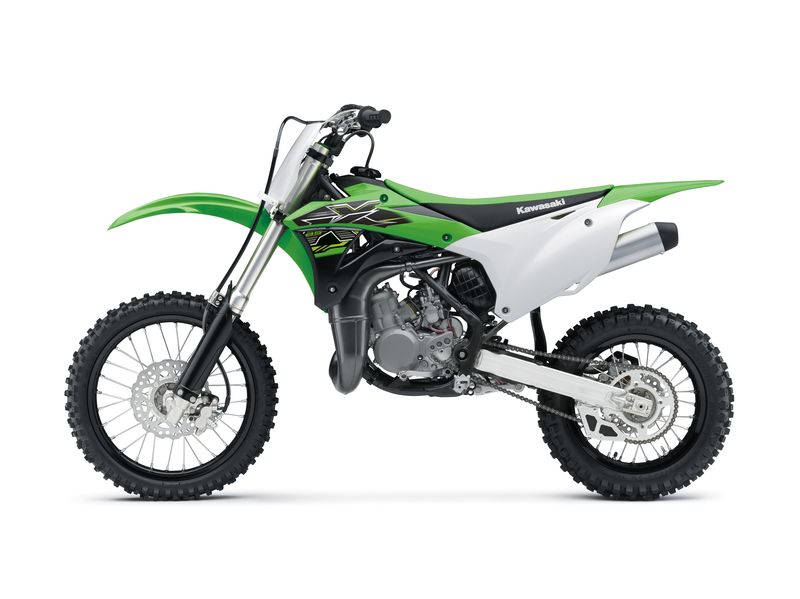

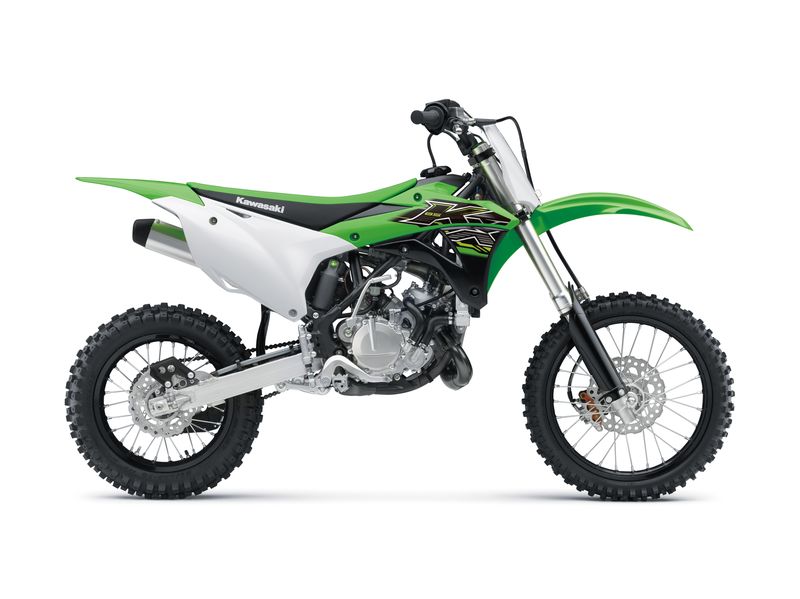

KX85
Power
Engine
Liquid-cooled, 2-stroke single with KIPS
Displacement
84cc
Bore x Stroke
48.5 x 45.8 mm
Compression Ratio
9.0-10.9:1
Fuel System
Carburettor: Keihin PWK28
Ignition
Digital-CDI
Transmission
6-speed, return
Final Drive
Chain
Performance
Front Suspension / Wheel Travel
ø36 mm inverted fork with adjustable compression damping / 275 mm
Rear Suspension / Wheel Travel
Uni Trak with adjustable compression and rebound damping and adjustable preload / 275 mm
Front Tire
70/100-17 40M
Rear Tire
90/100-14 49M
Front Brakes
ø220 mm petal disc with dual-piston caliper
Rear Brakes
ø184 mm petal disc with single-piston caliper
Lubrication
Pre-mix (32:1)
Steering
45° / 45°
Details
Frame Type
Perimeter, high-tensile steel
Rake/Trail
29° / 97 mm
Overall Length
1,830 mm
Overall Width
765 mm
Overall Height
1,100 mm
Ground Clearance
290 mm
Seat Height
830 mm
Curb Weight
75 kg
Fuel Capacity
5 litres
Wheelbase
1,265 mm

**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2019 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
